Quick Start

This guide will help you set up Mosaic to monitor collective metrics across multiple GPUs using vLLM and Ray.

Prerequisites#

Hardware#

A minimum of 2 GPUs is required to generate collective metrics. This tutorial assumes a single server equipped with 2 NVIDIA GPUs.

Software#

A Docker runtime with the NVIDIA Container Toolkit is required.

Environment Setup#

Fetch the source repository and the pre-built images.

Clone the Mosaic repository
git clone https://github.com/open-mosaic/mosaic.git
cd mosaic

Generate Mosaic Metrics Scraping Configuration#

We need to generate one metric scraping configuration per GPU server in production deployment. For this quick start tutorial, we only need to do it for one host:

Scrape configuration from Docker host
./deployments/file_sd_configs/file-sd-config-generate.sh host -i 172.17.0.1

Launch Mosaic Infrastructure#

Mosaic relies on the LGTM (Loki, Grafana, Tempo, Mimir) stack and specific hardware exporters to collect and visualize data.

Launch LGTM stack
docker compose -f ./deployments/docker-compose.yml up -d
Launch GPU and System exporters
docker compose -f ./deployments/nvidia-gpu-monitoring/docker-compose.yml \
  --profile=node-exporter \
  --profile=nvidia-device-exporter \
  --profile=process-exporter \
  up -d

Tip

If you encounter a buildx isn't installed error, disable BuildKit by running export DOCKER_BUILDKIT=0

Deploy Reference Workload#

The following command will launch a vLLM container with Mosaic profiler plugin and serve Qwen/Qwen3-8B model. Metrics are configured to stream to Mosaic while the inference is running.

Launch vLLM
docker compose -f ./deployments/docker-compose-vllm.yml up -d

Tip

If docker logs mosaic-vllm shows (APIServer pid=1) DEBUG 03-06 10:18:50 [v1/engine/utils.py:982] Waiting for 1 local, 0 remote core engine proc(s) to start. and does not proceed further, try adding the following environment variable to /deployments/docker-compose-vllm.yml

    environment:
      - NCCL_PROFILER_OTEL_TELEMETRY_ENDPOINT=http://mosaic-otel-lgtm:4318
      - VLLM_LOGGING_LEVEL=DEBUG
+      - NCCL_P2P_DISABLE=1

Verification#

Confirm Model Status#

Verify that the model is being served correctly:

curl -s localhost:8080/v1/models | jq '.data[].root'

Expected Output: "Qwen/Qwen3-8B"

Verify Metrics Generation#

Trigger an inference request to generate workload and populate the Mosaic metrics.

curl -s localhost:8080/v1/completions -H "Content-Type: application/json" -d '{
  "model": "Qwen/Qwen3-8B",
  "prompt": "Once upon a time",
  "max_tokens": 512
}' | jq

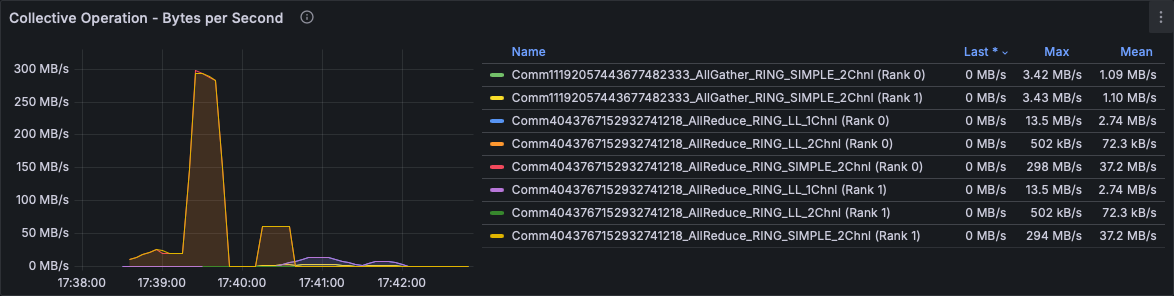

After the request completes, you can observe the updated metrics via Grafana dashboard at http://localhost:3000. You should see metrics being reported on the dashboards. Here's an example:

Sample Grafana Dashboard

Congratulations#

You have successfully:

  • Deployed the Mosaic observability stack.
  • Launched a multi-GPU Ray cluster.
  • Served a large language model using vLLM.
  • Triggered and verified live metric collection.

Interested in learning more about Mosaic? Visit Architecture and Profiler Design for more details.
