Mosaic Fault Playbook#

A fault-injection harness for the OpenMosaic profiler stack, plus a per-fault reference: the command that induces each failure, its metric signature, and how to recover. Every fault has a one-command inject and an auto-restoring safety timer.

Advances issue #31 (failure paths beyond happy-path testing). The harness is cluster-agnostic and reusable as an integration-test fixture.

The harness lives in tests/fault-injection/:

File Purpose
Makefile inject/restore/status targets (no site values in it)
config.mk.example copy to config.mk and edit for your cluster

Prerequisites#

Run the harness on the head node (the node you launch the workload from). It reaches the other nodes over SSH, so nothing is installed on the workers; they only receive commands. You need:

  • SSH key auth from the head node to every node in NODES, including the head node to itself (the harness treats all nodes uniformly).
  • sudo on every node for tc and nvidia-smi. Interactive sudo is enough: you are prompted once, at inject time, and the auto-restore timer inherits that privilege. For unattended/CI use, add NOPASSWD for just those two binaries, e.g. in /etc/sudoers.d/:
    <user> ALL=(root) NOPASSWD: /usr/sbin/tc, /usr/bin/nvidia-smi
  • docker access on the collector host (to bounce the collector container).
  • jq on the head node (for make watch).

Quick start#

cp config.mk.example config.mk     # edit for your cluster
make                               # help
make status                        # what's running / injected, per node
make workload                      # start your workload (see config.mk)

make inject-netem-loss PCT=1       # break something...
make restore                       # ...and undo it

Run make on the head node, it reaches the other nodes over SSH; nothing is installed on the workers. Every inject arms an auto-restore timer (DEADMAN=<s>, default 300; 0 disables).

1. What it does#

The harness deliberately breaks a running multi-GPU collective workload in reproducible ways and lets you record how each one looks in Prometheus/Grafana.

Fault injection. Most faults arm an auto-restore timer (DEADMAN=<s>, default 300); inject-kill-rank has none, since there is nothing to auto-restore (recover with make workload).

ID Fault Command (example) Parameters
1 clamp one GPU's clock make inject-slow-gpu RANK=3 CLK=1500 RANK which rank's GPU; CLK clock ceiling in MHz
2 packet loss make inject-netem-loss PCT=1 PCT percentage of packets dropped
2 added latency make inject-netem-delay MS=20 MS delay added per packet, in milliseconds
3 kill one rank make inject-kill-rank RANK=3 RANK which rank to kill
4 kill the OTel collector make inject-kill-collector none

All injects also accept DEADMAN=<s> (auto-restore window; 0 disables) and NODE=<host> where the target is a node rather than a rank.

For an arbitrary netem expression, call the shared injector directly: make _netem NETEM="delay 50ms limit 5000".

Operational. Inspect state, drive the workload, and undo faults:

Command (example) What it does
make or make help print help; never launches anything
make status what's running / injected, per node
make workload start the workload (WORKLOAD_CMD)
make kill-workload stop the workload everywhere
make watch live per-rank throughput
make restore clear every fault on every node

The design goal is that a reviewer can reproduce any fault, on their own cluster, from this document alone.

2. Setup#

cp config.mk.example config.mk     # then edit config.mk for your cluster
make                               # prints help; never launches anything
make status                        # ranks / qdisc / armed timers, per node

config.mk holds every site-specific value and is gitignored, so your topology and paths never get committed. The Makefile itself contains no hostnames, interfaces, or paths. Every variable is documented inline in config.mk.example; work through that file top to bottom and you have a working config.

The workload#

make workload runs WORKLOAD_CMD (from config.mk) as one detached, long-lived process. config.mk.example ships a reference launcher for nccl-tests over TCP; replace it with your own workload. The fault targets don't care what the workload is; they only use WORKLOAD_PROC to detect it.

Two rules the harness enforces, both of which matter for clean signatures:

  • Not a restart loop. A loop rebuilds the NCCL communicator each iteration, resetting the profiler's two-window stabilization, so nothing exports. Use one long-lived process.
  • One job at a time. make workload refuses to start a second concurrent job; two jobs share the link and emit series with identical hostname+rank labels that silently interleave.

The safety timer (deadman)#

Every inject arms a timer that undoes the fault after DEADMAN seconds (default 300). Because you reach each node over the same interface or GPU you're degrading, this is what prevents a bad injection from stranding a node.

make inject-netem-loss PCT=1              # default 300s
make inject-netem-loss PCT=1 DEADMAN=600  # longer window (e.g. for screenshots)
make inject-netem-loss PCT=1 DEADMAN=0    # no timer; persists until `make restore`

3. Reading the metrics#

Cross-check derived metrics against an independent source#

Derived metrics (rates and latencies computed from transfer samples, rather than counted directly) are worth validating against an independent source such as the kernel NIC counter or DCGM. A per-rank rate in particular depends on how the transport reports completion: if it reports early (e.g. TCP send() returning at kernel handoff rather than on delivery), the rate can read high. Where you need a ground truth, prefer a monotonic bytes counter and derive the rate yourself.

To read the wire directly, independent of any exporter:

R1=$(cat /sys/class/net/<iface>/statistics/tx_bytes); sleep 10
R2=$(cat /sys/class/net/<iface>/statistics/tx_bytes)
echo "$(( (R2-R1)/10/1000000 )) MB/s on the wire"

Rate queries alias: measure against a same-run baseline#

rate(<counter>[1m]) catches a whole number of scrape increments per window, so consecutive reads can step by roughly one scrape's worth (often ~10%). Treat sub-10% moves as noise, and measure a fault against a baseline captured in the same run, not against a fixed number: steady-state throughput can vary run to run.

Know your cluster class#

Which faults actually bite depends on what your workload is bound by:

Bound by delay/loss (Fault 2) GPU clamp (Fault 1)
network (e.g. 1 GbE, large messages) strong, this is the bottleneck weak, GPU has slack, profiler shows nothing
compute weaker strong, throughput drops
latency (small messages, many collectives) delay bites hard varies

The signatures below are described generically; concrete numbers vary by cluster.

4. Faults#

Each injected fault stands in for a class of real failure. The injection method is artificial, but the metric signature it produces is the one you would see from the real thing:

Fault Emulates
1, GPU clock clamp a GPU running below spec: thermal throttling from a failed fan or blocked airflow, a power cap, or a degrading VRM
2, netem loss / delay a degraded link: a failing NIC or cable, a congested or misconfigured switch port, or a noisy shared uplink
3, kill a rank a training process dying: OOM kill, a segfault, an uncorrectable GPU error, or a node dropping out
4, kill the collector an observability outage where the cluster is healthy but you have gone blind: collector crash, OOM, or a bad config rollout

Fault 1: GPU clock clamp#

make inject-slow-gpu RANK=3 CLK=1500

Locks one GPU to CLK MHz (nvidia-smi -lgc). Resolves rank → GPU → PID so it clamps exactly the target GPU.

Signature: the only asymmetric fault. Every other fault moves all ranks together; this one hits a single GPU. On a network-bound workload it may not move collective throughput at all (the clamped GPU still finishes its reduce before the link is ready), in which case the signature lives only in DCGM: that one GPU's SM_CLOCK / POWER_USAGE drops while the others hold. The profiler-based signatures some designs predict (rank_latency / collective_time divergence) may not appear; verify against DCGM.

Near-binary: bisect CLK. Clamp too hard and the collective times out and the job aborts (looking like Fault 3); too soft and nothing changes. For reproducing a controlled slowdown, find the value that throttles one GPU without killing the job by bisection.

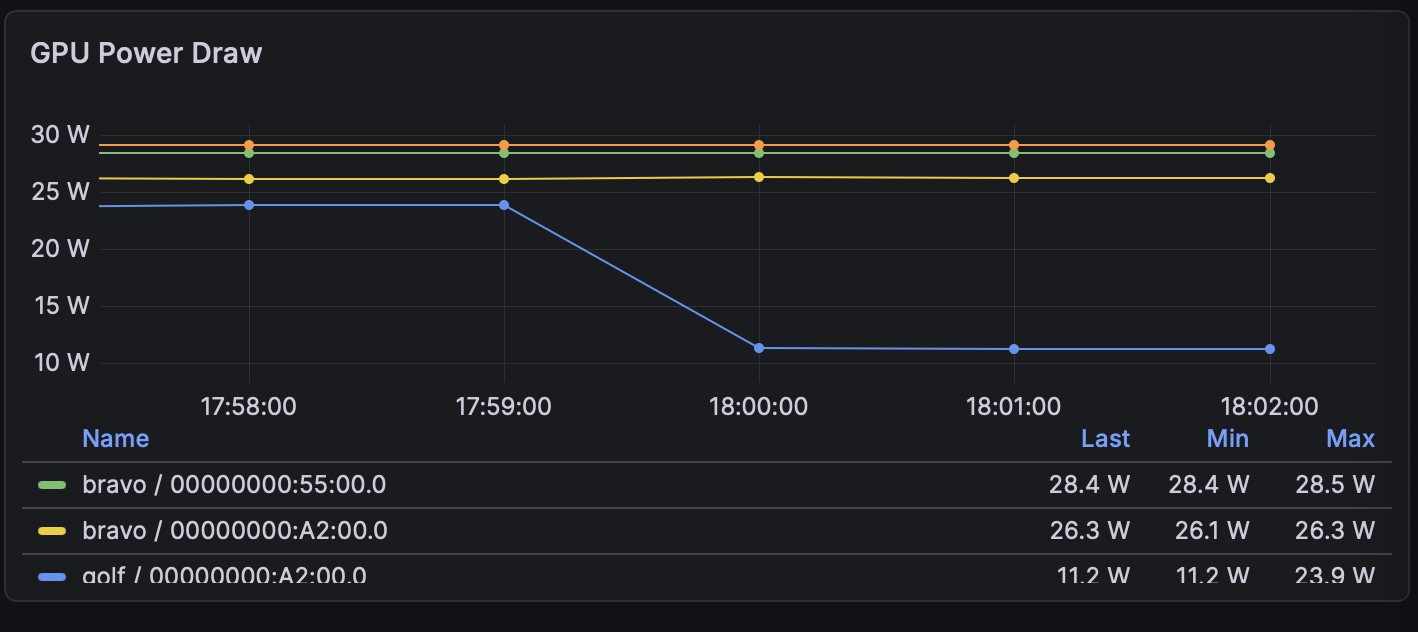

Screenshot, DCGM GPU Power (or SM_CLOCK): the clamped GPU drops while the others stay flat.

Fault 1 GPU power

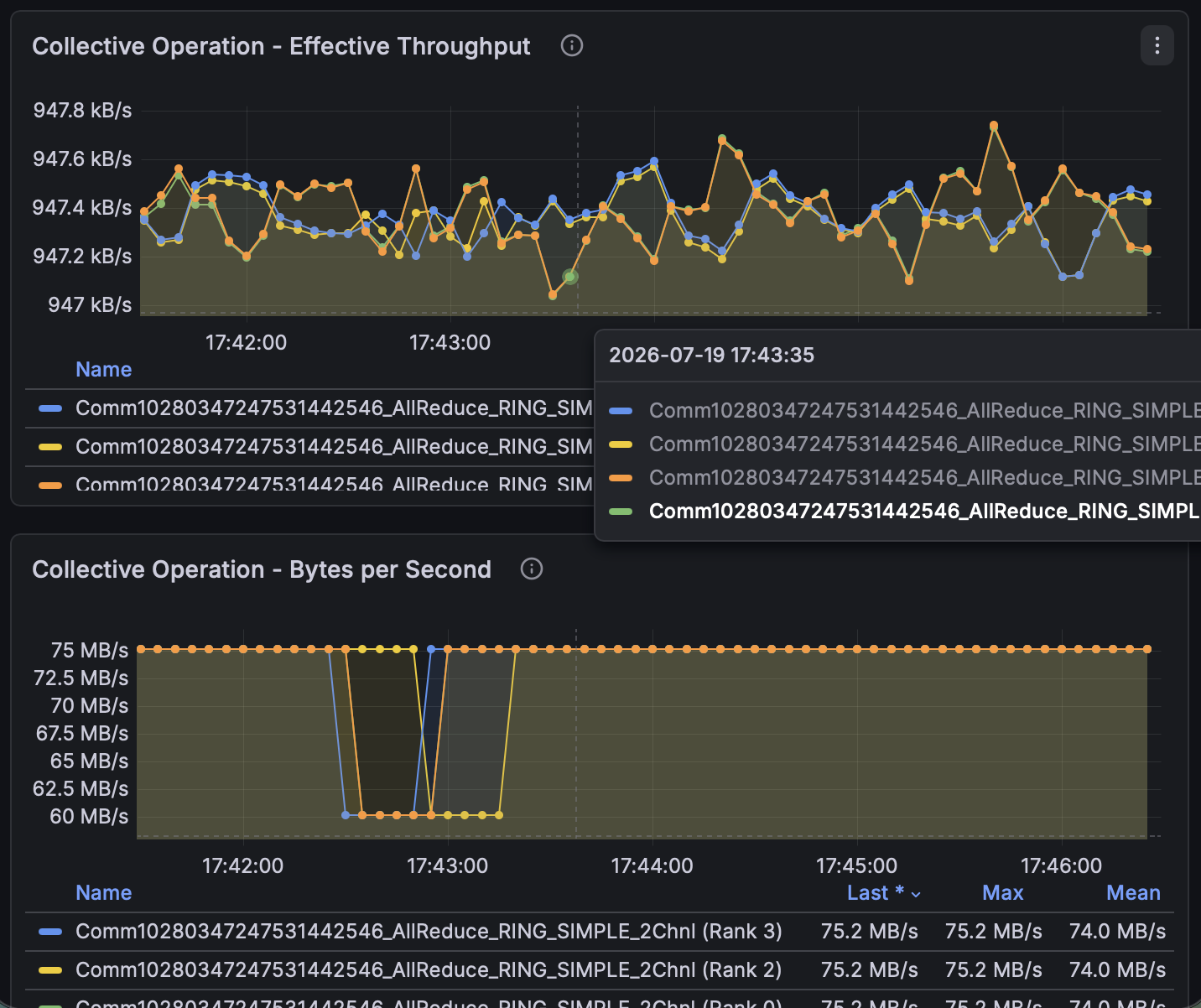

Screenshot, throughput: flat throughout (on a network-bound cluster). The profiler showing nothing is the point.

Fault 1 throughput unaffected

Recovery: timer runs nvidia-smi -rgc; or make restore.

Fault 2: Network latency / loss#

make inject-netem-loss  PCT=1       # packet loss
make inject-netem-delay MS=20       # added latency
make _netem NETEM="loss 3%"   # arbitrary netem expression

Applies tc netem on NODE.

Signature: symmetric degradation. All ranks degrade together; network faults are symmetric. The magnitude and whether the job survives are cluster-dependent: on a bandwidth-bound cluster the usable band is narrow and the response is close to binary (a small loss degrades; a larger one flatlines the job). Bisect to find the value that degrades without killing.

The delay-becomes-loss trap. netem's default queue is limit 1000 packets. If the bandwidth-delay product exceeds that (tens of milliseconds on a fast link), the queue overflows and a delay fault silently turns into heavy packet loss. Raise it explicitly if you want pure latency: make _netem NETEM="delay 50ms limit 5000".

Localization depends on the network topology. A ring all-reduce is bulk-synchronous, so the collective completion time is always gated by the slowest link; that much is topology-independent. Whether you can then localize the slow link is not:

  • Shared uplink (this test cluster). All ranks on a node share one NIC (eth0), so tc netem on that NIC degrades every rank on the node together. They're indistinguishable in the metrics, so the fault cannot be localized below node granularity here, a limitation of the single-uplink setup, not of the metrics themselves.
  • Per-GPU NIC. Where each GPU has its own NIC, degrading one NIC slows only the links that traverse it. The overall collective is still gated by that slow link, but the rank-to-rank latency metrics (rank_latency, per pair) should single out the affected pair, so the fault can be localized. (Not verified here; this cluster has no per-GPU NICs to test on.)

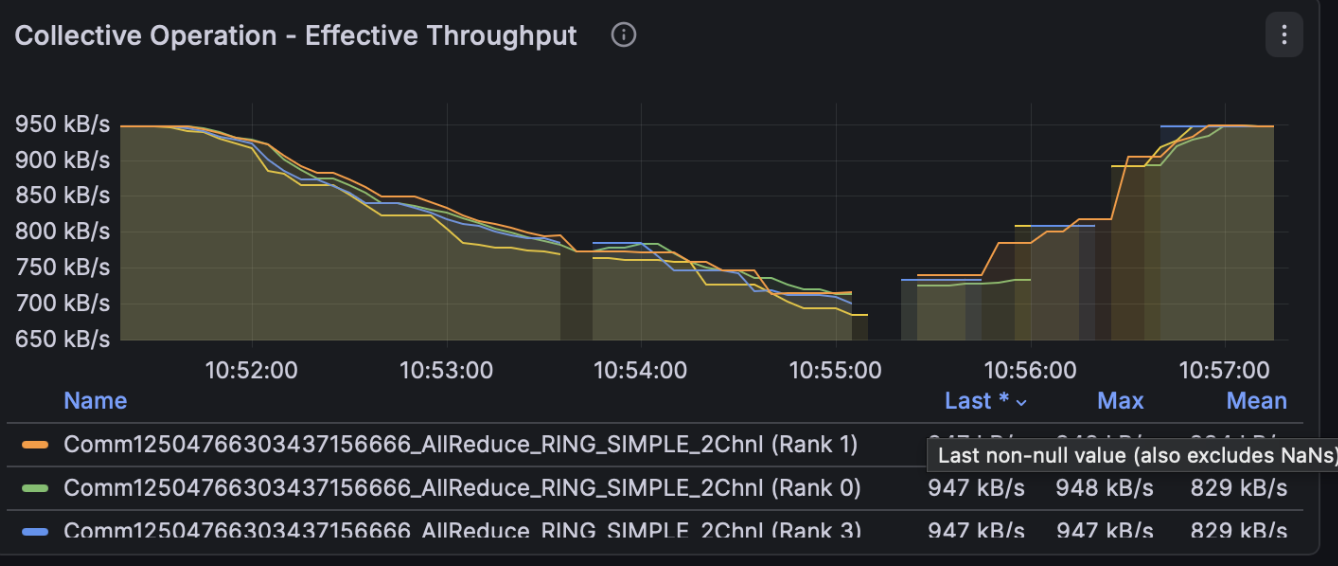

Screenshot, throughput under the fault: clear degradation, all ranks together, recovering after restore. (Use a full-scale panel so the drop is visible, not a zoomed one.)

Fault 2 loss

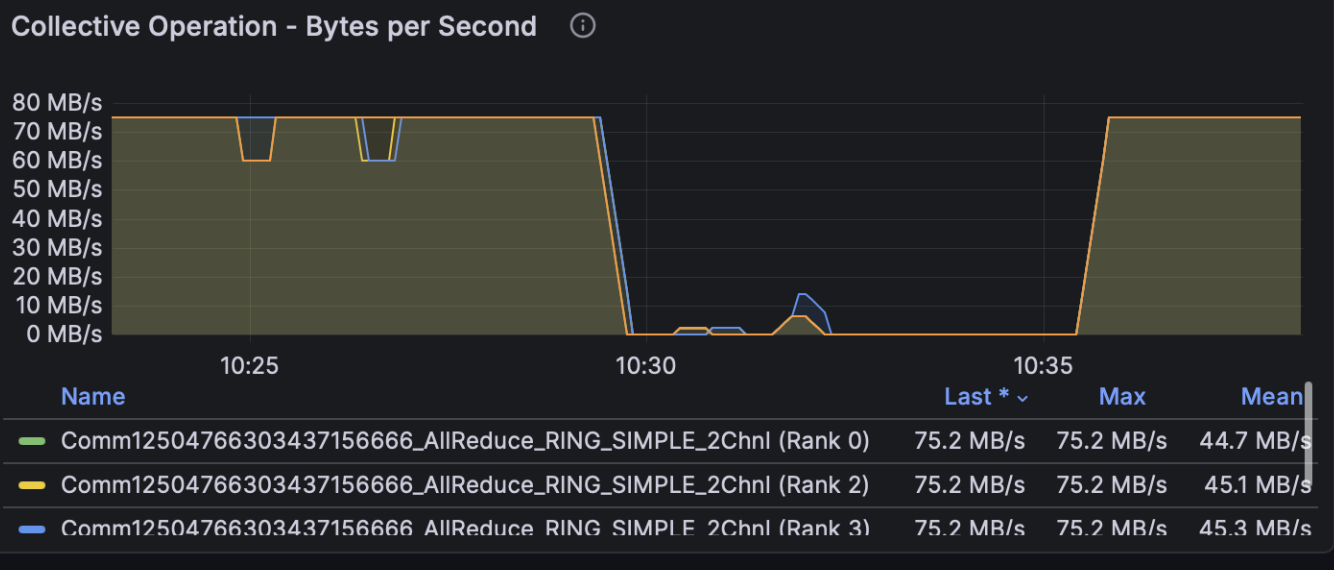

Screenshot, past the cliff: a larger loss flatlines the job, indistinguishable from a dead job (contrast Fault 3).

Fault 2 heavy loss

Recovery: timer runs tc qdisc del; or make restore. restore ≠ recovery: after a heavy fault the job may take minutes to resume, or need a restart.

Fault 3: Kill a rank#

make inject-kill-rank RANK=3

Resolves rank → GPU → UUID → PID, then kill -9. (It does not match the workload binary with pgrep -f: the launcher's command line contains that string too, so that would kill the launcher.)

Signature: the whole job dies; the cluster goes idle. NCCL has no fault tolerance, so killing one rank aborts the entire job. All collectives flatline at once and the machine idles: GPU power drops to its idle floor on every GPU, host CPU use drops to near zero. The collector stays healthy (up{job="<collector>"} = 1).

The signal is three independent instruments agreeing the job stopped at the same instant; no single panel is load-bearing:

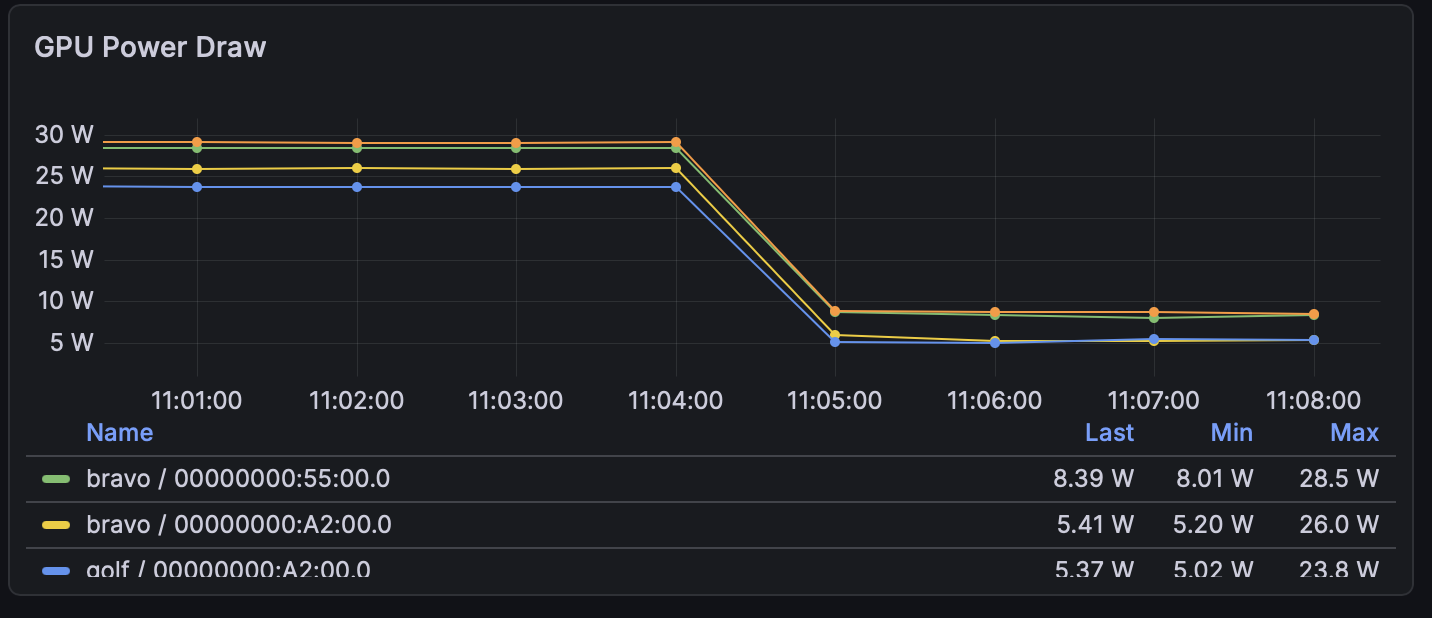

GPU power, all GPUs drop to idle

Fault 3 GPU power all drop

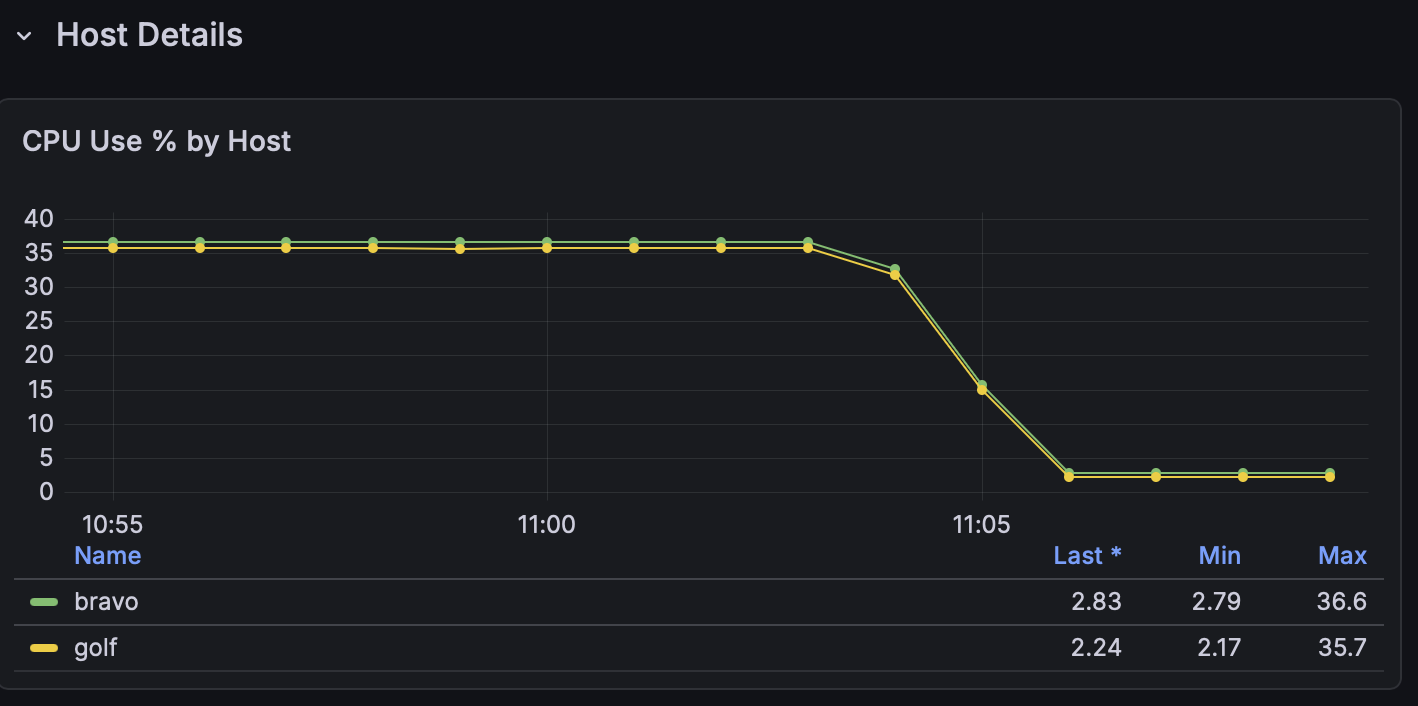

host CPU drops on every node

Fault 3 CPU drop

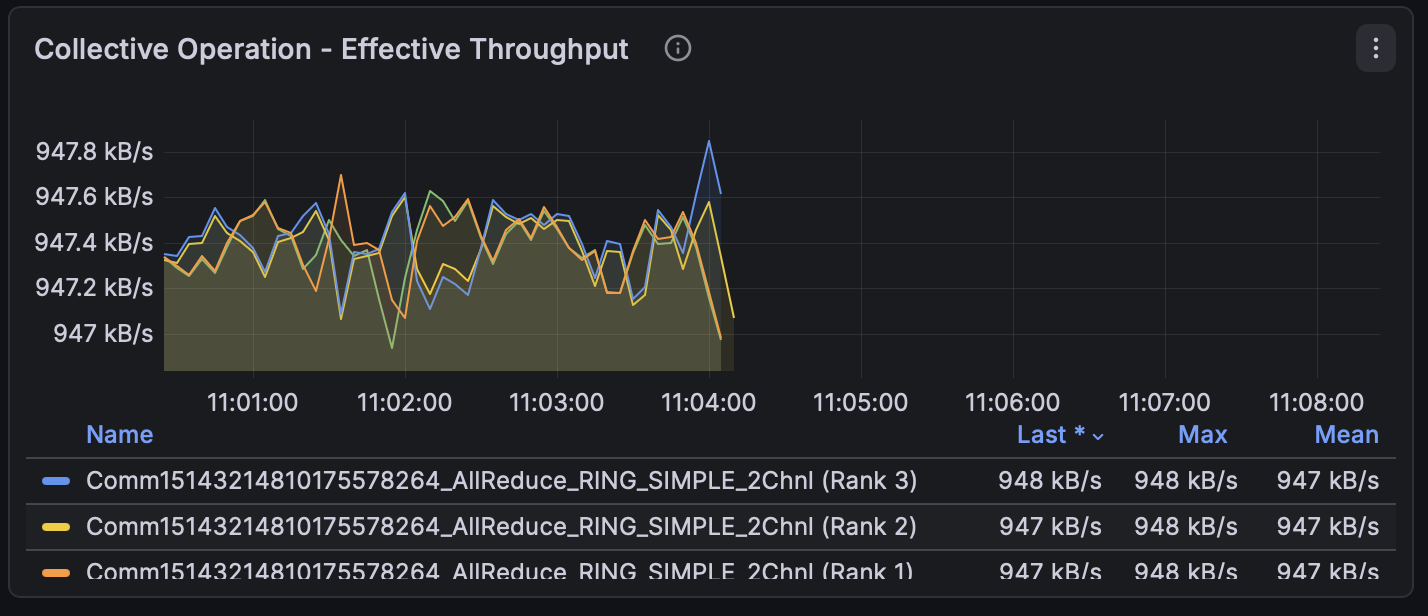

collective metrics stop when the job dies

Fault 3 metrics gap

Recovery: not self-healing; make workload.

Fault 4: Kill the OTel collector#

make inject-kill-collector

pkill -x <collector-proc> from the host, exact-name match, not pkill -f, which would also match a workload whose command line contains the collector's name (e.g. NCCL_PROFILER_PLUGIN=otel). Kills only the collector process, leaving Prometheus and Grafana (same container) alive, so the fault is observable while it happens.

Signature: metrics gap ≠ cluster failure. The profiler series stop, but the cluster is fine: up{job="<collector>"} → 0 while every other exporter stays 1, the wire stays at line rate, and GPU power stays at its working level.

This is the inverse of Fault 3, the distinction a diagnostic must learn:

metrics up{collector} GPU power
3 kill-rank flatline 1 (collector fine) idle (job dead)
4 kill-collector flatline 0 (collector dead) working (job alive)

Same "metrics stopped" symptom; opposite everything else. GPU power alone separates them.

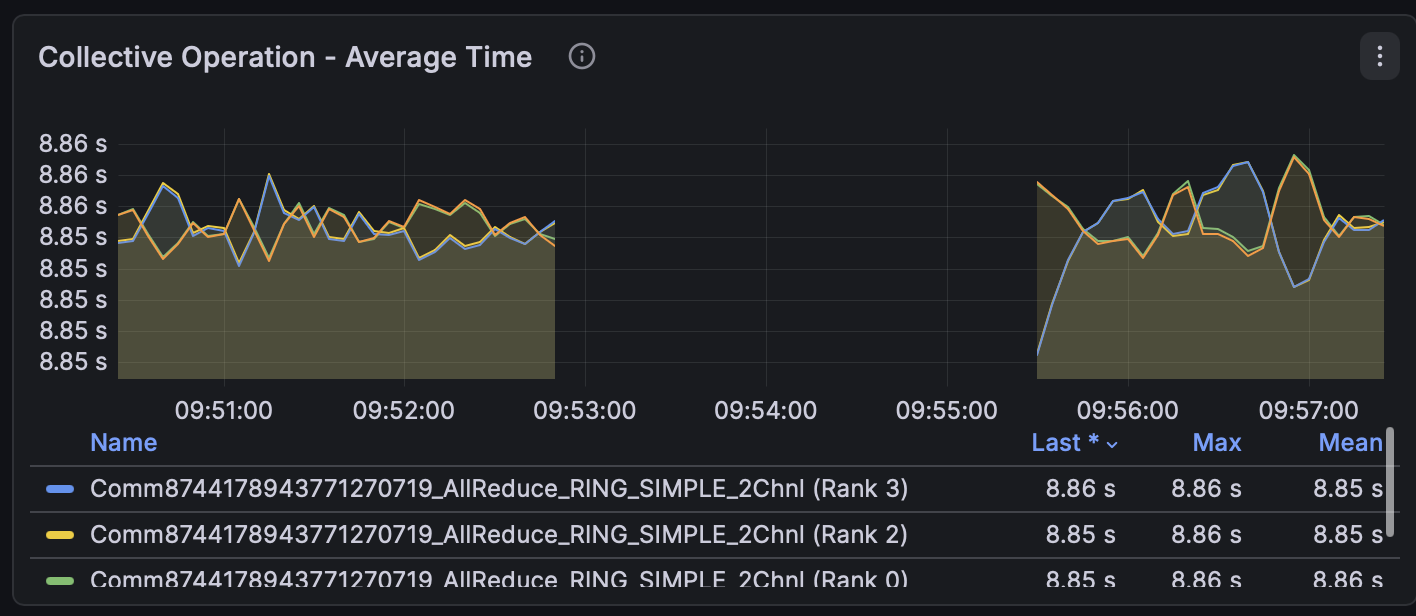

throughput series stop at the kill (the gap is the fault)

Fault 4 metrics gap

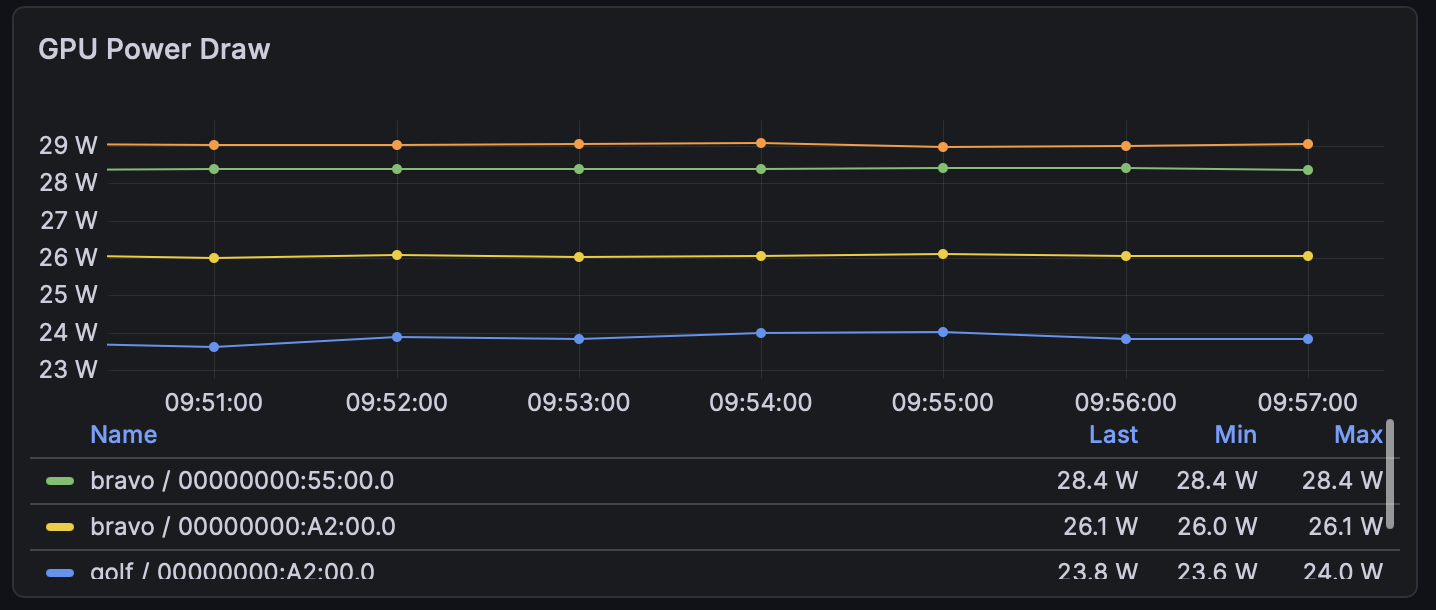

GPU power flat across the gap (cluster alive)

Fault 4 GPU power flat

Recovery: timer runs docker restart <collector-ct>; or make restore. Metrics resume on their own once the collector is back. docker restart preserves the TSDB (it lives in the container's writable layer); docker compose down destroys all collected metrics.

5. Telling the faults apart#

Fault Throughput Ranks GPU (DCGM) up{collector} Job survives?
1 slow-gpu usually unchanged one GPU one GPU clock/power low 1 yes
2 netem down (or 0) all together normal 1 depends on severity
3 kill-rank flatline all together all idle 1 no
4 kill-collector flatline n/a working 0 yes

Decision order for a "collectives stopped" event:

  1. up{job="<collector>"} = 0 → Fault 4 (collector died; cluster is fine).
  2. Else all GPUs idle → Fault 3 (job died).
  3. Else throughput down, GPUs busy, ranks uniform → Fault 2 (network).
  4. Else one GPU's clock/power low while throughput holds → Fault 1.

This tree is a deterministic baseline, not a ceiling: it reads an instantaneous snapshot, so it can't separate a throttle-induced abort from a kill-rank (see below), which needs the pre-abort trajectory and residual state the snapshot discards. Reasoning over the full metric set, the aim of the autonomous-diagnosis work, should distinguish cases this rule collapses.

Throttle-death vs rank-death (postmortem)#

A throttle severe enough to abort the job produces the same live symptom as Fault 3 (kill-rank): every collective flatlines, all GPUs idle. Three signals should still separate them after the fact (expected, not yet verified here):

  1. The lead-up. A throttle degrades before it kills: for seconds to minutes before the flatline, DCGM should show one GPU's SM_CLOCK / POWER_USAGE sagging below its peers. A killed rank is instantaneous, a single uniform cliff with no preceding single-GPU divergence. That last ~30 to 60 s is the discriminator, and the TSDB retains it.
  2. Residual GPU state. DCGM-exporter runs on the host, so it keeps reporting after the job dies. A real throttle may leave a labelled cause behind: DCGM exposes a clock-throttle-reason bitmask (HW thermal, SW power cap, HW power brake); if your exporter surfaces it, the reason should stay set on the affected GPU (nvidia-smi --query-gpu=clocks_event_reasons.active is the CLI fallback). The injected clamp leaves the applied clock lock in place until -rgc / make restore. A kill-rank leaves every GPU cleanly idle with no throttle reason set.
  3. How NCCL aborted. A slow GPU makes its peers wait, so the job should die from a NCCL watchdog timeout (a hang). A killed rank makes its peers see a broken connection (peer gone). The workload log's abort signature (timeout/hang vs remote-process-exited) is independent evidence.

6. Gotchas#

  • pkill -f <collector> can kill the workload if the workload's command line contains the collector's name. Use pkill -x.
  • pgrep -f <workload-binary> also matches the launcher (mpirun). Resolve rank → GPU → PID instead.
  • up == 0 alone is not a health signal: unused/misconfigured scrape targets are perpetually down. Key on the specific collector job.
  • restore ≠ recovery: clearing a fault removes the cause; the job may still need minutes, or a restart, to recover.
  • rate([1m]) aliases ~±10%. Ignore sub-10% moves; baseline in the same run.
  • docker compose down wipes the TSDB. Use docker restart to bounce the stack without losing history.
  • Don't run the workload as a restart loop: it breaks the profiler's two-window stabilization and nothing exports.
  • A bare make prints help and launches nothing; make workload refuses a second concurrent job.
